Pli-Dek

HD-215 System

HD-215 System

The HD-215 system is a heavy-duty, hybrid waterproofing underlayment system with a minimum thickness of 215 mils for concrete plaza/podium decks, balconies, pool decks, and roof decks that are designed to receive pavers or ceramic tiles.

This robust system features dual waterproofing layers – 1) a durable polymer cement base coat (6000 psi) and 2) Cold Rubber High Build (60-120 mils) fluid applied membrane. This system offers an advanced solution for waterproofing underlayments, addressing common detailing challenges found in traditional fluid-applied coatings while ensuring both durable and flexible waterproofing protection.

  • Innovative 6,000 psi base coat
  • Incorporates a flexible waterproofing membrane
  • Eliminates inherent detailing issues
  • Minimum thickness of 215 mils



View full details

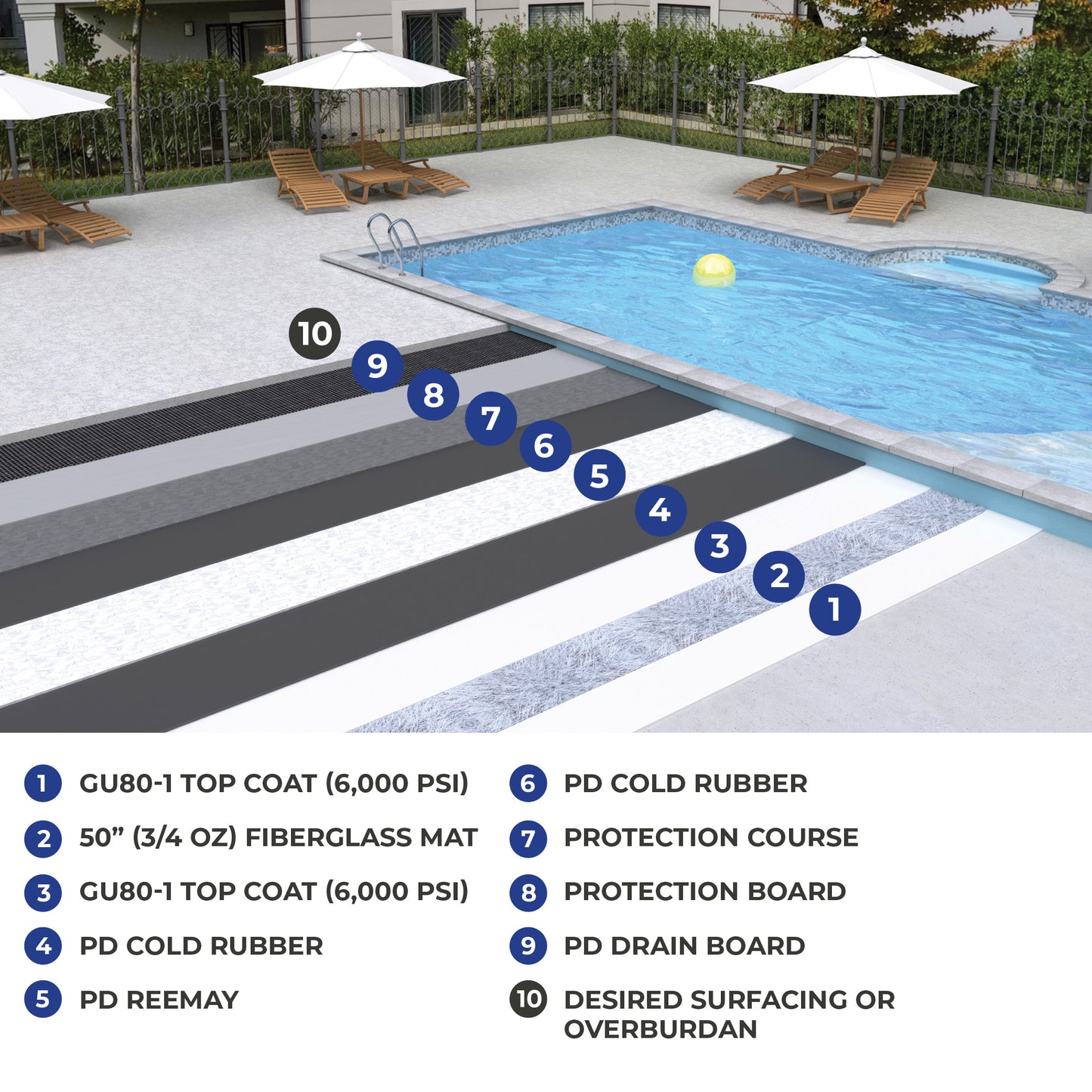

Products in this System

Click below to view the individual products in the system and view product sizes, options, and documentation.

BASE COAT
GU80-1 Top Coat

GU80-1 Top Coat is a proprietary blend of various sands and cement, that when combined with the GU80-1 Liquid Admixture, creates a polymer modified cement co...

View Product Details

BASE COAT
GU80-1 Liquid Admixture

The GU80-1 Liquid Admixture is a water based acrylic emulsion. The GU80-1 Liquid Admixture is designed to be mixed with Pli-Dek GU80 cement products and to b...

View Product Details

FIBERGLASS & RESIN
50" Fiberglass Mat Roll

The 50" (¾ oz) chopped strand fiberglass mat is a medium-fine fiber chopped strand mat and is composed of multi-directional chopped glass filament bundles. I...

View Product Details

FIBERGLASS & RESIN
PD Resin

PD Resin is a high build elastomeric acrylic material designed to absorb into the fiberglass mat and adhere to the concrete substrate or the Pli-Dek GU80-1 B...

View Product Details

FLUID APPLIED COATING
Pli-Dek Cold Rubber High Build

Pli-Dek Cold Rubber High Build is a fluid-applied, single component. solvent free, moisture cure and heavy bodied protective coating designed for horizontal ...

View Product Details

HIGH BUILD REINFORCEMENT
PD Reemay

PD Reemay is a spunbonded polyester fabric at approximately 1.0 oz/yd2 (34 gsm). The PD Reemay is as a reinforcement for Pli-Dek fluid applied waterproofing ...

View Product Details

DRAIN BOARD
PD Drain Board

PD Drain Board performs a multi-faceted role by providing protection for waterproofing systems and managing subsurface water around building foundations. Soi...

View Product Details
