Pli-Dek

HD-250 System

HD-250 System

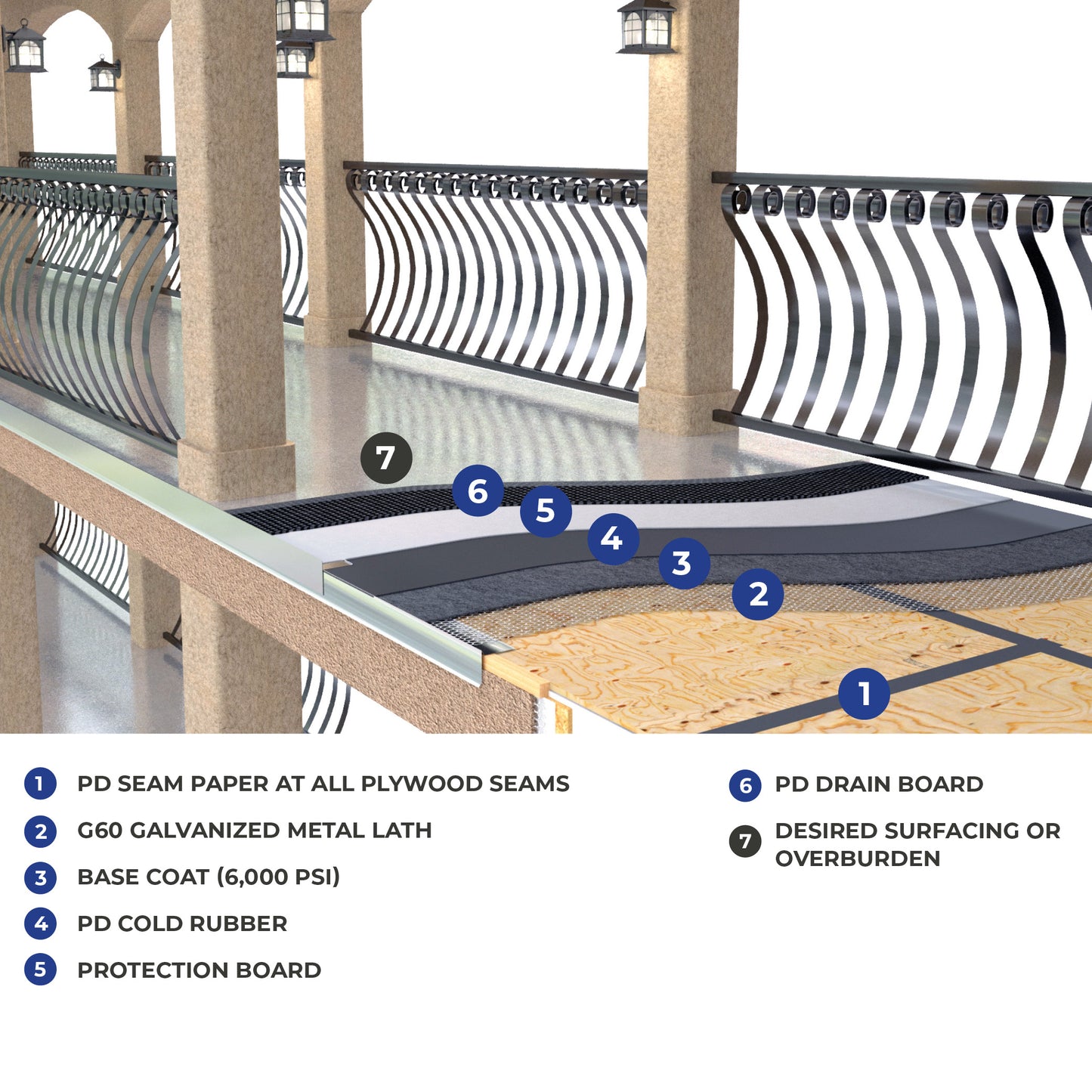

The HD-250 system is a heavy-duty, hybrid waterproofing underlayment systems with a minimum thickness of 250 mils for plywood corridors, balconies, and roof decks that are designed to receive a concrete topping or pavers.

This robust system features dual waterproofing layers – 1) a durable polymer cement base coat (6000 psi) and 2) Cold Rubber High Build (60-120 mils) fluid applied membrane. This system offers an advanced solution for waterproofing underlayments, addressing common detailing challenges found in traditional fluid-applied coatings while ensuring both durable and flexible waterproofing protection. Click here for architectural details.

  • Innovative 6,000 psi base coat
  • Incorporates a flexible waterproofing membrane
  • Eliminates inherent detailing issues
  • Minimum thickness of 250 mils



View full details

Products in this System

Click below to view the individual products in the system and view product sizes, options, and documentation.

PLYWOOD SEAM PAPER
PD Seam Paper

The Pli-Dek Seam Paper is a 1½” wide, water resistant, reinforced, asphalt laminated Kraft paper material that is used to cover plywood joints. High water ...

View Product Details

METAL LATH
G60 Metal Lath

The 2.5 lbs./sq. yard G60 Hot Dipped Galvanized Metal Lath is a hot dip galvanized with a G60 finish. The metal lath is carefully formed with diamond shaped ...

View Product Details

BASE COAT
GU80-1 Gray Base

The Pli-Dek GU80-1 Gray Base is a proprietary blend of various sands and cement, that when combined with the GU80-1 Liquid Admixture, creates a polymer modif...

View Product Details

BASE COAT
GU80-1 Liquid Admixture

The GU80-1 Liquid Admixture is a water based acrylic emulsion. The GU80-1 Liquid Admixture is designed to be mixed with Pli-Dek GU80 cement products and to b...

View Product Details

FLUID APPLIED COATING
Pli-Dek Cold Rubber High Build

Pli-Dek Cold Rubber High Build is a fluid-applied, single component. solvent free, moisture cure and heavy bodied protective coating designed for horizontal ...

View Product Details

HIGH BUILD REINFORCEMENT (IF REQUIRED)
PD Reemay

PD Reemay is a spunbonded polyester fabric at approximately 1.0 oz/yd2 (34 gsm). The PD Reemay is as a reinforcement for Pli-Dek fluid applied waterproofing ...

View Product Details

DRAIN BOARD
PD Drain Board

PD Drain Board performs a multi-faceted role by providing protection for waterproofing systems and managing subsurface water around building foundations. Soi...

View Product Details
