Pli-Dek

Pli-Dek Standard System

Pli-Dek Standard System

The Pli-Dek® System is a 1-hour, Class “A” Fire Rated, BML Listed #8110-2327:0500 waterproof deck coating for plywood substrates that offers high durability and low maintenance for exterior use. This system is designed for high traffic pedestrian balconies, roof decks, walkways and stairs where waterproofing and durability are essential. The Pli-Dek® System consists of a galvanized metal lath, polymer cement base coat and intermediate coat, and offers a wide range of durable finishes. Click here for architectural details.

  • ICC ESR-2097
  • Florida Building Code Approved
  • 1-hour & Class “A” fire rated
  • The only waterproof deck system with a BML listing (#8110-2327:0500) for decking for Wildland Urban Interface {W.U.I}.
  • Lightweight
  • UV resistant
  • Extremely durable – 6,000 psi
  • ADA compliant finishes
  • Fast drying & easy to install
  • Extensive finish options

Located in an area vulnerable to snow, salt, humidity and rainfall? Pli-Dek offers an inclement weather system. Click here for more information.



View full details

Products in this System

Click below to view the individual products in the system and view product sizes, options, and documentation.

PLYWOOD SEAM PAPER
PD Seam Paper

The Pli-Dek Seam Paper is a 1½” wide, water resistant, reinforced, asphalt laminated Kraft paper material that is used to cover plywood joints. High water ...

View Product Details

METAL LATH
G60 Metal Lath

The 2.5 lbs./sq. yard G60 Hot Dipped Galvanized Metal Lath is a hot dip galvanized with a G60 finish. The metal lath is carefully formed with diamond shaped ...

View Product Details

BASE COAT
GU80-1 Liquid Admixture

The GU80-1 Liquid Admixture is a water based acrylic emulsion. The GU80-1 Liquid Admixture is designed to be mixed with Pli-Dek GU80 cement products and to b...

View Product Details

BASE COAT
GU80-1 Gray Base

The Pli-Dek GU80-1 Gray Base is a proprietary blend of various sands and cement, that when combined with the GU80-1 Liquid Admixture, creates a polymer modif...

View Product Details

FIBERGLASS & RESIN
50" Fiberglass Mat Roll

The 50" (¾ oz) chopped strand fiberglass mat is a medium-fine fiber chopped strand mat and is composed of multi-directional chopped glass filament bundles. I...

View Product Details

FIBERGLASS & RESIN
PD Resin

PD Resin is a high build elastomeric acrylic material designed to absorb into the fiberglass mat and adhere to the concrete substrate or the Pli-Dek GU80-1 B...

View Product Details

SCREED COAT (OPTIONAL)
GU80-1 Top Coat

GU80-1 Top Coat is a proprietary blend of various sands and cement, that when combined with the GU80-1 Liquid Admixture, creates a polymer modified cement co...

View Product Details

SCREED COAT (OPTIONAL)
GU80-1 Liquid Admixture

The GU80-1 Liquid Admixture is a water based acrylic emulsion. The GU80-1 Liquid Admixture is designed to be mixed with Pli-Dek GU80 cement products and to b...

View Product Details

KNOCK DOWN COAT FINISH OPTION
GU80-1 Top Coat

GU80-1 Top Coat is a proprietary blend of various sands and cement, that when combined with the GU80-1 Liquid Admixture, creates a polymer modified cement co...

View Product Details

KNOCK DOWN COAT FINISH OPTION
GU80-1 Liquid Admixture

The GU80-1 Liquid Admixture is a water based acrylic emulsion. The GU80-1 Liquid Admixture is designed to be mixed with Pli-Dek GU80 cement products and to b...

View Product Details

CUSTOM FINISH OPTION
GU80-1 Custom Top Coat

The GU80-1 Custom Top Coat is a proprietary blend of various sands and cement, that when combined with the GU80-1 Liquid Admixture, is a polymer modified cem...

View Product Details

CUSTOM FINISH OPTION
GU80-1 Liquid Admixture

The GU80-1 Liquid Admixture is a water based acrylic emulsion. The GU80-1 Liquid Admixture is designed to be mixed with Pli-Dek GU80 cement products and to b...

View Product Details

COLOR SEALER FINISH OPTION

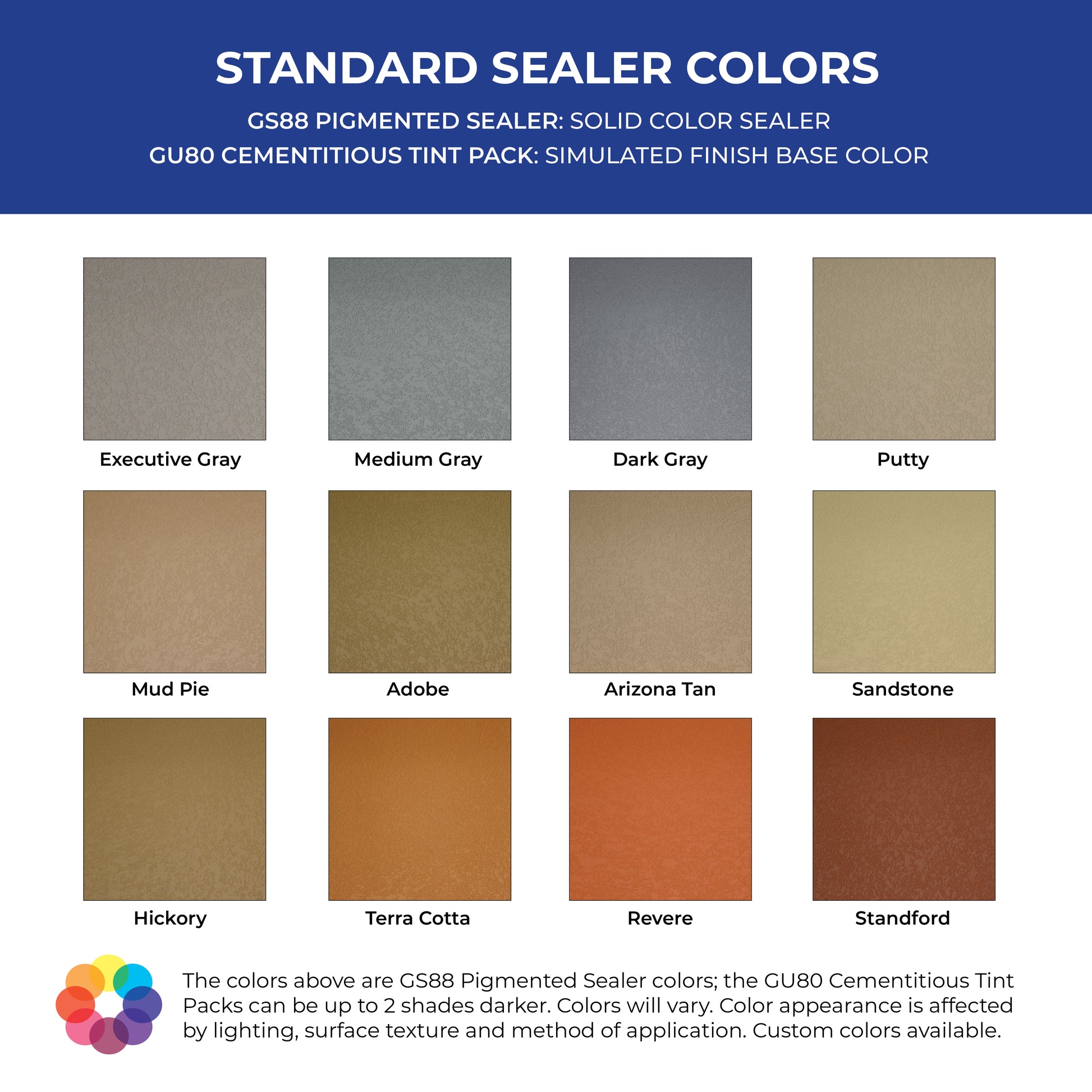

GS88 Color Sealer

GS88 Color Sealer is a premium quality elastomeric acrylic top coating, which is a blend of high solid acrylic polymers that provides an elastomeric water re...

View Product Details

COLOR STAIN FINISH OPTION
PD Stain

PD Stain is a water-based stain product with an easy, one step way to stain safely. Unlike acid stains, there is no need for rinsing or neutralizing. The PD ...

View Product Details
